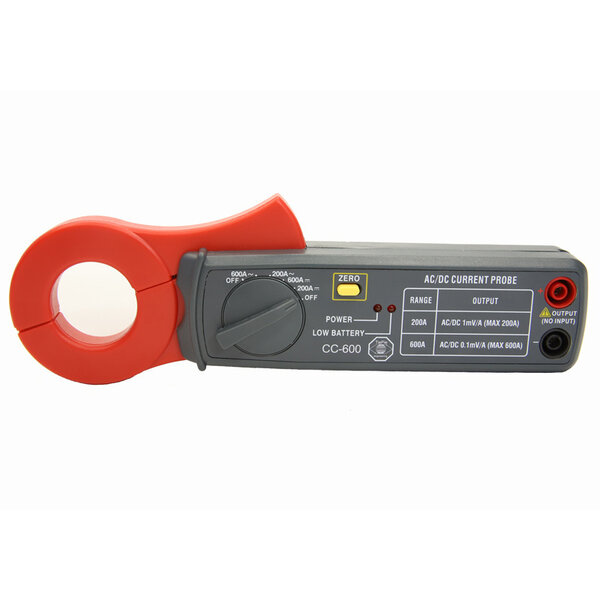

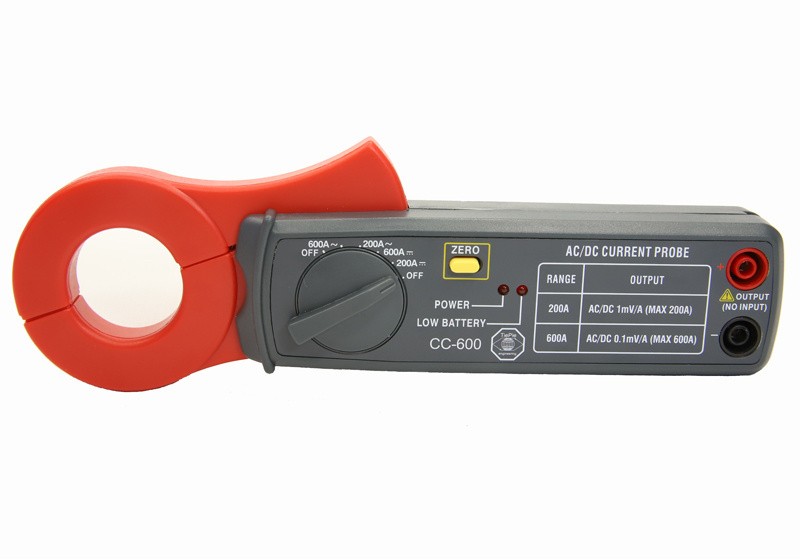

GMTO Current clamp to 600 A

€100,60 Excl. tax

The ATS 620 current clamp can be used on multimeter and (automotive) scope. Read more

Vezonden met BPost
Snelle verzending
Afrekenen in een veilige omgeving
Vragen? Bel ons!

Specifications

Brand:

GMTO

Article number:

ATS620

Information

The ATS 620 current clamp can be used on multimeter and (automotive) scope.

Measure currents with the Current Clamp ATS 620 without interrupting a closed circuit or affecting the insulation. Its large current range makes this current clamp suitable for performing compression tests, incandescent and starting currents in combination with a labscope (automotive oscilloscope).

¬†

Bandwidth

DC up to 400 Hz (-3dB)

¬†

Effective measuring range

200 A range: output 1 mV / A, 1 V = 1000 A

600 A range: output 0.1 mV / A, 1 V = 10000 A

¬†

Accuracy

DC 200 A range: ¬± (3% ¬± 0.6 A)

DC 600 A range: ¬± (3.5% ¬± 3 A)

AC 200 A range: ¬± (3.5% ¬± 0.4 A)

AC 600 A range: ¬± (4% ¬± 4 A)

¬†

Connection

2 isolated 4 mm banana buses
