Probe Oscilloscope-probe HP-3250I

Information

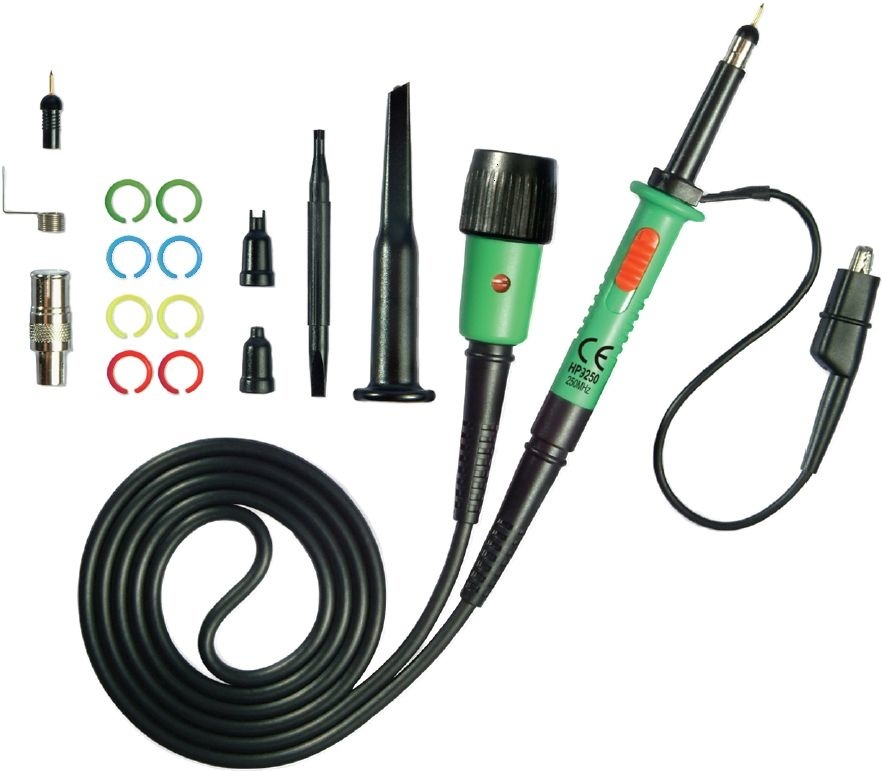

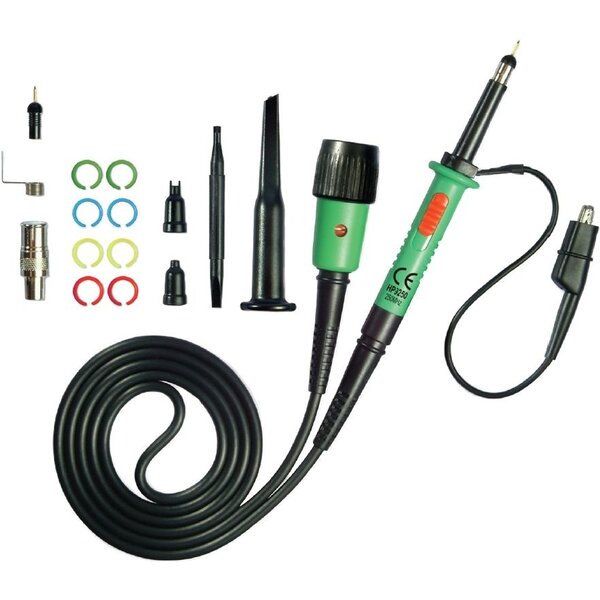

The Oscilloscope Probe 1:1-1:10 - HP-3250I is a 1:1-1:10 switchable passive, high impedance oscilloscope probe with a bandwidth of 250 MHz (1:10) designed and calibrated for use with an input impedance of 1 MOhm / 20 pF, but the probe can be used with an oscilloscope with an input capacitance of 10 to 30 pF.



The oscilloscope probe has a slide switch with which the attenuation of X1 and X10 can be selected.



The modular construction of the oscilloscope probe makes it easy to replace the most important parts yourself, if necessary.
